Classic Rack: Specially Designed For Flat Roofs
The Classic Rack System is an aluminum-based fixed-type solar structure for flat roofs. This system has portrait orientation and comes with 5°, 10°, 15° tilt angles. Classic Rack flat roof structure is capable of handling a bigger size of panels (300Wp to 750Wp) and provides a minimum 300mm ground clearance between the roof and panel which is attained by placing a minimum 100mm foundation block. The structure can sustain a wind speed of 200Kmph, as per IS standards.
The unique is the clamp plate it makes a stronger connection between the base support and panels. The classic rack is very easy and super fast to install with a minimum number of components. The structure is completely made of high-grade metal to provide continuity of earthing and fasteners are made up of Stainless steel.
25 Years of Warranty
Competitive price and quality
Smart Mounting System
24X7 support
Tested, safe & certified system
Excellent price/quality ratio

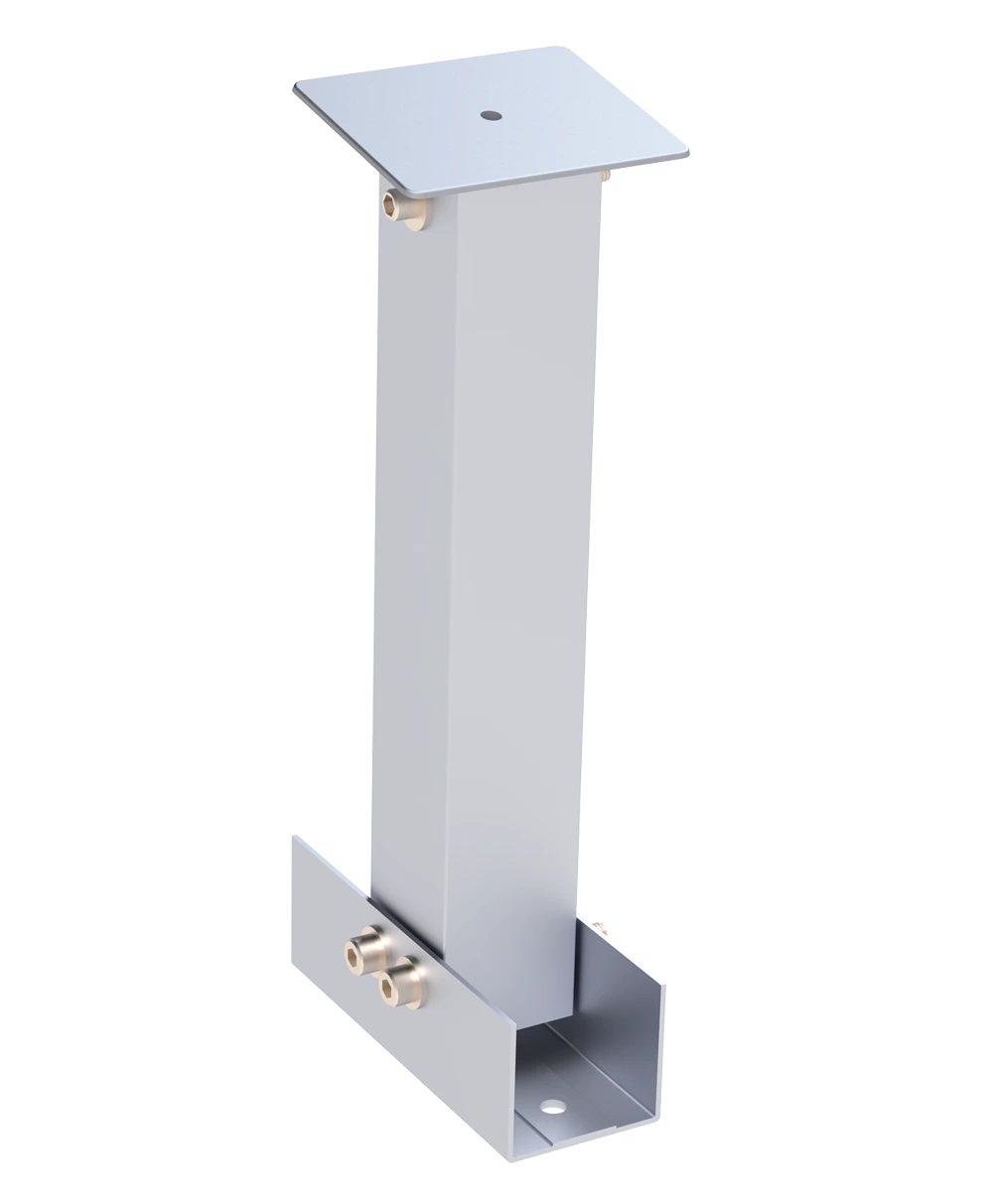

- CL-Back Leg

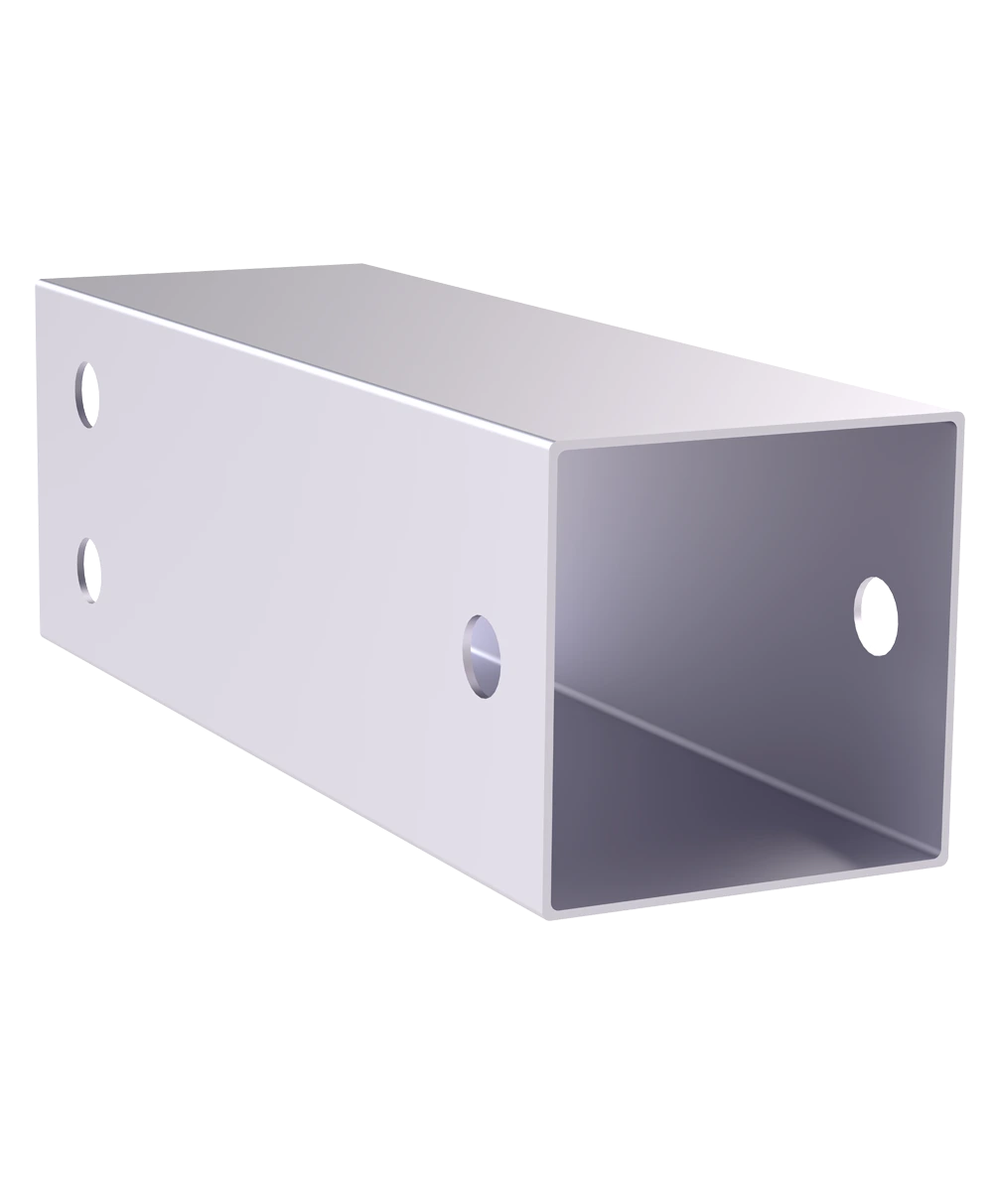

- CL-Front Leg

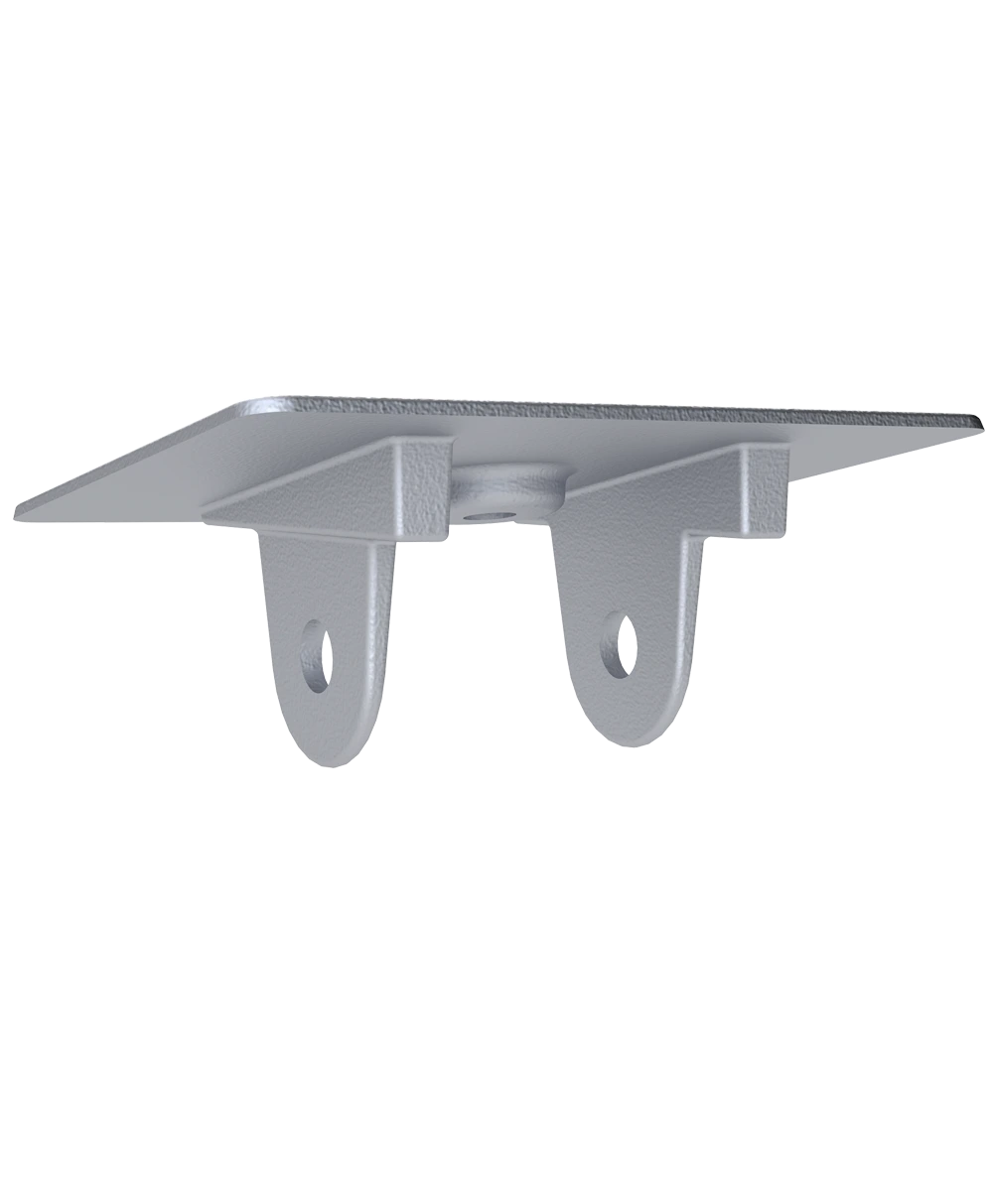

- Clamping Plate

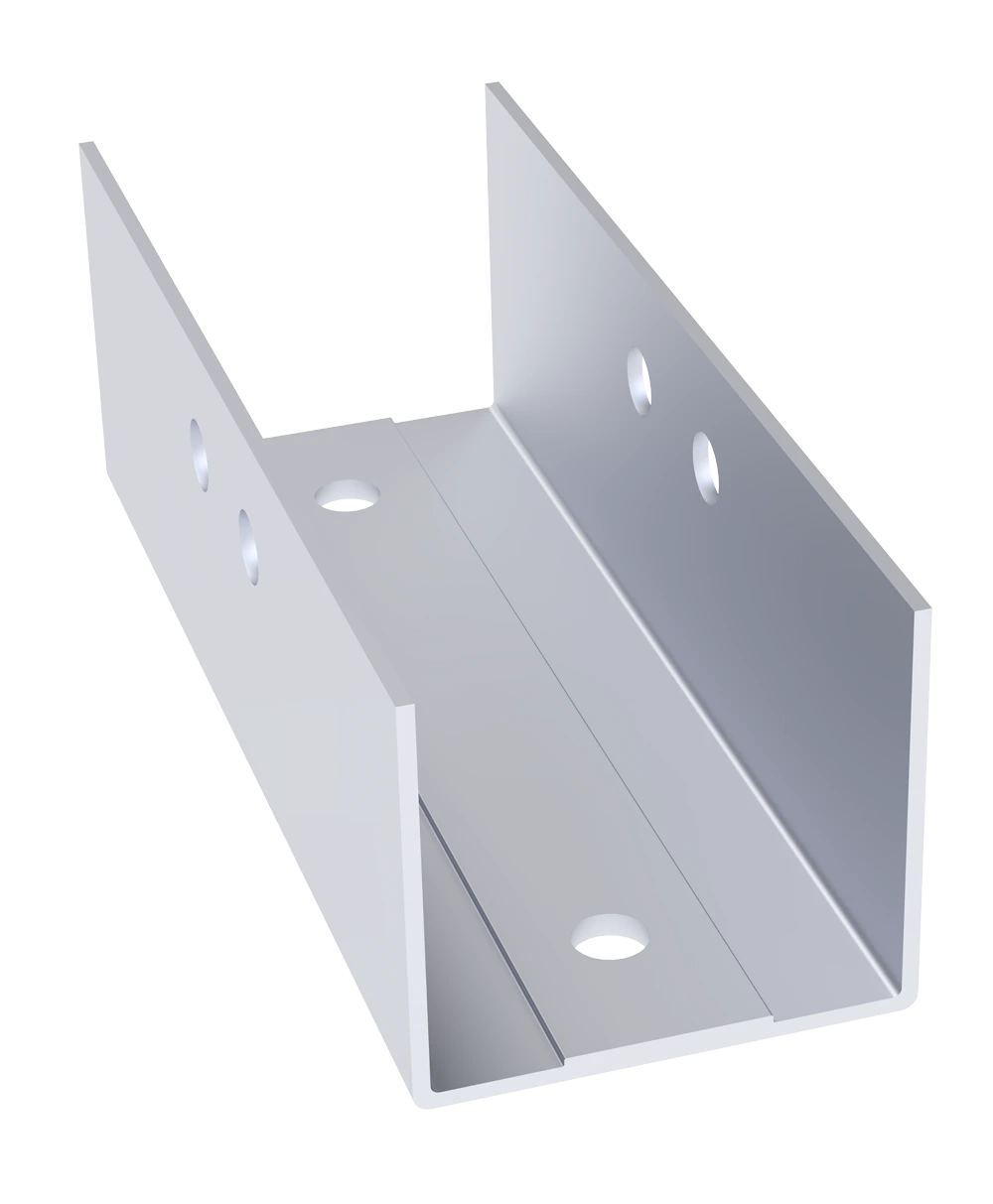

- CL-Base Support
- End Clamp
- Mid Clamp
- Anchor Bolt
